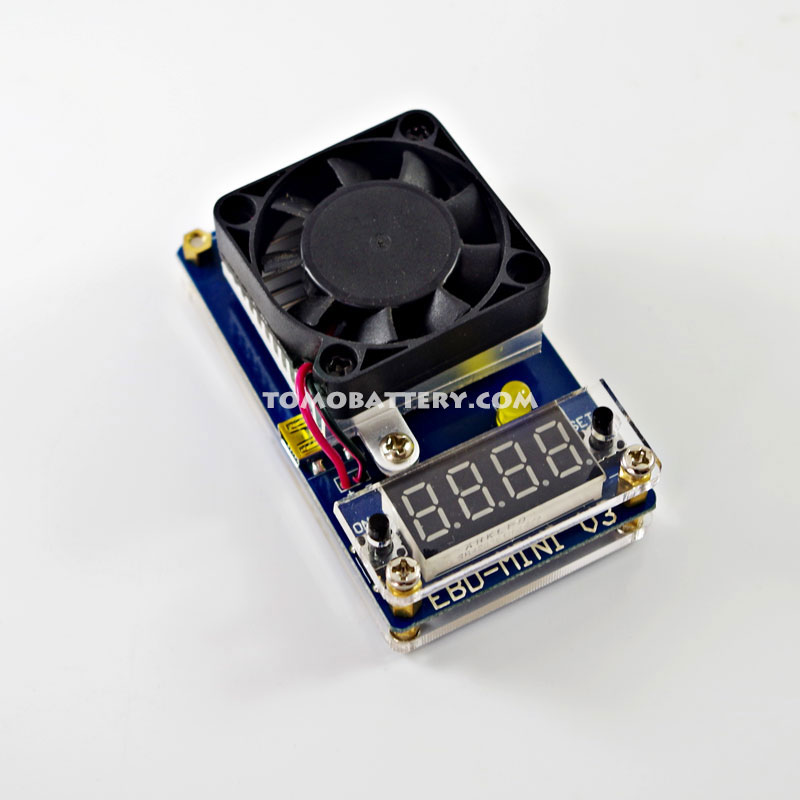

EBD MINI V3 Battery Tester

Quick Overview

EBD MINI V3 Battery Tester is also known as EBD MINI M03 Power Bank Tester.

  • Features
  • Functions
  • Download EB series tester software
  • Download USB-to-TTL driveinstaller
  • Instructions
  • Off-line operation instructions
  • Video
  • Other models



Category:

Description

Features:

  • It’s a battery tester and power bank tester highly recommended by lots of professional forums.
  • It tests battery performance, by monitoring capacity, resistance, voltage, current, average current, and wattage.
  • Connected with computer, it draws curve using the tester software, which is very convenient to battery performance analysis.
  • By using 4 wires the test data is much preciser.
  • Constant-current discharge
  • Smart LED display

Functions:

  • Power supply: MiniUSB(5V) – connected with computer or 5V power bank are both OK).
  • Voltage range: 0.10-20.00V – cut-off voltage can be set & not limit battery types.
  • Current range: 0.05-3.00A – current can be set( discharge power over 20W, automatically the current will be confined.
  • Wiring mode: test with 4 independent wires – voltage wires are seperated with current wires, so the more accurate measure data can be sure.
  • Test way: discharge in a constant-current way – if the voltage being tested lower than cut-off voltage, it’ll stop automatically.
  • LED display: display voltage data, current data, and capacity data – through switching 2 keys.
  • Computer control software: has more extended functions such as drawing curves, calibrating measurement data, updating device firmware, tesing power and current, etc., through specialized USB-to-TTL(MiniUSB).

EB Series Tester Software:

USB-to-TTL Serial Port Line DriveInstaller(PL2303 Chip):

Other models:

CategoryModelChannel No.VoltageDischargeChargeWattageHow to workApplication
Entry LevelEBD-V3/M03115V3ANonsupport20WConstant current dischargeBattery / Power bank
Standard levelEBC-A05130V5A3A60WConstant current discharge
Constant wattage discharge
Constanct current charge
Constanct voltage charge
5V charge
Battery / Power bank
Standard levelEBC-A10130V10A5A60WConstant current discharge
Constant wattage discharge
Constanct voltage charge
Battery / Power bank
Standard levelEBD-A01130V1ANonsupport30WConstant current discharge
Constant wattage discharge
Small capacity battery
Single use battery
High wattage levelEBC-A10H130V10A5A150WConstant current discharge
Constant wattage discharge
Constanct voltage charge
Battery / Power bank
High wattage levelEBD-A20H130V20ANonsupport150WConstant current discharge
Constant wattage discharge
Battery / Power bank
High current levelEBC-A40L15V40A20A180WConstant current discharge
Constant wattage discharge
Constanct voltage charge
Lithium battery
High current levelEBD-A40L15V40ANonsupport180WConstant current dischargeLithium battery
Only for batteryEBC-B10120V10A5AConnected external resistorConstant current discharge
Constanct current charge
Constanct voltage charge
Lead-acid battery
Lithium battery
Only for batteryEBD-B10H190V10ANonsupportConnected external resistorConstant current dischargeBattery pack
Only for batteryEBD-B20H190V20ANonsupportConnected external resistorConstant current dischargeBattery pack
Only for batteryEBC-X051084.5V10A5A--Constant current discharge
Constanct voltage charge
Lithium battery
